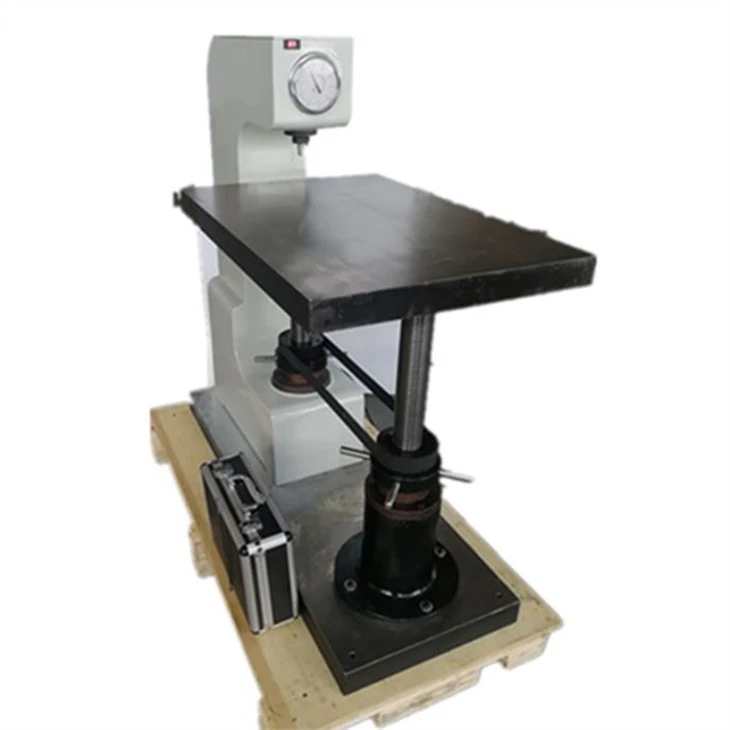

Luv Nqi Hluav Taws Xob Txuas Ntxiv Rockwell Hardness Tester
Khoom taw qhia:
1. Lub cev ntu ntawm Electric ncua Rockwell hardness tester yog tsim los ntawm cov txheej txheem casting nyob rau hauv ib zaug thiab tau muaj hnub nyoog ntev lawm. Piv nrog lub tshuab vaj huam sib luag, kev siv lub sij hawm ntev ntawm cov duab hloov tau yog me me, thiab tuaj yeem hloov kho rau ntau qhov chaw hnyav;
2. Kev siv lub tshuab pleev xim ci, cov xim pleev xim rau qib siab, khawb cov tsis kam, ntau xyoo ntawm kev siv yog tseem ua kev ci ntsa iab li tshiab;
3. Lub rooj ua haujlwm loj loj 400 * 600mm (tuaj yeem tsim tau) tuaj yeem kuaj loj workpieces ntseeg nkaws;
4. Tus xov tooj tuaj yeem nyeem tus nqi hardness ncaj qha, thiab lwm yam teev nrog Rockwell tuaj yeem xaiv;
5. Kev txhuam txhuam cov ntxaiv pub saws, thiab lub zog ntsuas precision yog siab;
6. Qhov sib xyaw ua ke precision precision hydraulic tsis tau saws, uas tsis muaj lub teeb meem tsis txaus, ua haujlwm ruaj khov thiab thau khoom tawm, tsis muaj kev cuam tshuam thiab kho tau ceev;
7. Ob txoj kab sib txuas sib txuas synchronous lifting qauv nrog kev nthuav dav thiab cov khoom siv zawm ua rau lub tshuab nqa ruaj khov;
8. Qhov tseeb yog ua raws GB / t230.2, iso6508-2 thiab ASTM E18.
Ntau yam thov:
1.Txoj Kev Ua Haujlwm Rockwell Hardness Tester yog dav siv los ntsuas Rockwell hardness ntawm cov hlau tsis zoo, cov hlau tsis ruaj thiab cov khoom siv tsis yog xim;
2. Nws yog feem ntau siv los ntsuas Rockwell hardness ntawm cov khoom siv kho cua sov xws li quenching thiab quenching thiab tempering;
3. Cemented carbide, carburized steel, quenched steel, nto hardened steel, cam khwb cia steel, aluminium alloy, tooj liab alloy, malleable casting, hlau mos, Quenched thiab tempered steel, annealed steel, kabmob thiab lwm yam khoom siv;
4. Qhov tsim nyog tshwj xeeb rau cov khoom me me.
Kev tsis:
Qauv | HRDJ-150 |
Kev ntsuas ntau | 20-95HRA ， 10-100HRBW ， 20-70HRC ； |
Kev siv dag zog yuam | 588.4、980.7、1471N （60、100、150kgf) |
Max. qhov siab ntawm daim ntawv xeem | 120 hli |
Qhov tob ntawm caj pas | 135 hli |
Qhov kev daws teeb meem nyuaj | 0.5HR |
Lub Zog | AC 220V ， 50Hz |
Qhov ntev | 500 * 400 * 700mm （Mekas） |
Nyhav | 130kg |
Kev Xa Khoom thiab Xa Khoom& Tus me nyuam:
Ua ntej ua zaub mov xa tuaj, weputhardness testeron ntoo pallet thiab zawm nws nrog screws, tom qab ntawd muab npaus txaus nyob ib ncig ntawm nws kom tiv thaiv kev sib tsoo puas thaum lub tsheb thauj mus los. Qhov thib ob, peb siv lub thawv ntoo kom ntim cov tshuab kuaj lub tshuab kuaj tawv thiab ua kom nruj nrog nrawm nrog ntsia hlau. Thaum kawg, nws yuav raug kaw tag nrho sab nraum lub thawv ntoo nrog cov txheej txheem ntim.
Peb muaj cov ua tiav kev thauj mus los, los ntawm peb lub Hoobkas mus rau ib qho chaw nres nkoj hauv Suav teb, thiab kev koom tes ntev nrog ntau lub tuam txhab thauj khoom ， kom tiv thaiv kev thauj mus los sai dua thiab nyab xeeb dua.
